Understanding Applications, Design, And Features of a Switching Power Supply

The electronics industry relies heavily on switching power supplies because of their efficiency, flexibility, and superior performance in comparison with other alternatives. With advancements in power technologies, consumers and industries are switching to more sophisticated and energy-efficient devices. Hence, switching power supplies have become more prominent. In this article, we explain the meaning and functions of a switching power supply, its merits, and its industrial uses. Also included is an excerpt from OMCH for further studies.

Advanced Features of a Switching Power Supply

An electronic device known as a switching power supply (or switch-mode power supply (SMPS)) is one that converts power electronically. The shifting of power occurs by applying devices on and off at certain intervals. This method cuts down on energy loss greatly which makes it more appealing to energy-efficient systems in comparison to traditional linear power supplies.

The main feature is switching regulators which allow for electric power conversion with minor losses. These regulators store energy temporarily, then release it in a controlled and limited manner. The rolling voltage maintained by these regulators is called output voltage. With regulated performance, switching power supplies can be found in nearly every electronic device including phone chargers, industrial equipment, and more.

How Does It Work?

A switching power supply method uses semiconductor switching techniques to convert one voltage level to another. It usually involves these steps:

• Rectification and Filtering: The input in the form of Alternating Current (AC) treatment is changed into Direct Current (DC) by rectification and is subsequently filtered.
• Switching Stage: The transistor is used to make or break a circuit containing a load.
• Transformer Action: Transformateurs or inductors shape the voltage to the desired output level.
• Output Rectification and Filtering: The different output in voltages is also filtered to make sure the voltage supplied is stable and is filtered later again for stability.

The sequence functions at very high frequencies (usually at tens or hundreds of kHz), which enable small sized components, transformers and as a whole unit, smaller in weight and size.

Types of Switching Power Supplies

Every switching power supply has its unique use case:

• Buck Converter: Steps down voltage from a higher level to a lower one.
• Boost Converter: Turns (DC) Electric energy to Mechanical energy with higher voltage, from a lower level to a higher one.
• Buck-Boost Converter: Can lower the voltage or enlarge it for the level depending on the input power.
• Flyback Converter: Common in lower-power applications, isolates the input from the output through the transformer.* Forward Converter: This is also used for medium to high power, while having an input-output isolation.

Prerequisites such as relative input and output voltage levels, power levels, desired operational efficiency, and isolation requirements critically determine the selected topology.

Advantages of Switching Power Supplies

Numerous benefits are associated with switch-mode power supplies which make them a universal preference across industries.

• Excellent Efficiency: Generally, they have an efficiency of about 80–90% or more, which lessens energy wastage.
• Small Volume: This is due to the operation at higher frequencies, where filters and transformers are quite small.
• Light: Aside from size, the weight of the power supply units is significantly lighter.
• Very Wide Range of Input Voltage: This flexible nature concerning power supply variance makes it suitable for global applications.
• Uniform Output: There is a steady output voltage maintained consistently, even when there are changes in load and input where other supplies would falter.
• Reduced Heat Losses: Energy loss is less which means lesser heat and smaller cooling systems.

Since space, weight, and efficiency are crucial, these attributes render switching power supplies beneficial in such scenarios.

Use Cases and Applications in Various Industries

Telecommunications, automation, automotive, and medical systems all utilize switching power supplies for different purposes. Here are some examples of how these industries leverage this technology:

Automation and Manufacturing

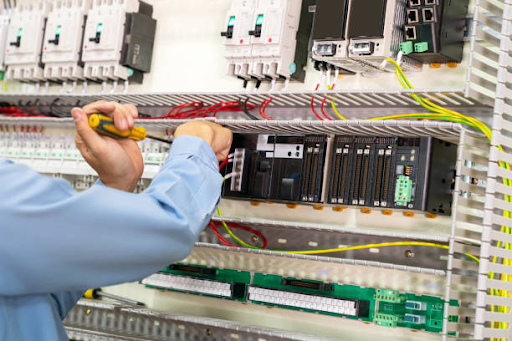

In automation, switching power supplies are crucial for providing energy to PLCs as well as to sensors and actuators. The compactness and reliability in harsh environments makes these units perfect for control cabinets as well as factory floor machinery.

Telecommunications

Telecom equipment requires power conversion at a reasonable price, and with high efficiency in base stations and data centers. Switching power supplies provide continuous operation while reducing energy and heat generation in the system.

Automotive

The automotive industry is heavily reliant on rotational devices that are driven by electric motors. Switching power supplies are used to provide stable voltage to control modules which include infotainment systems and safety systems, even during severe changes to the input voltage from the car battery.

Medical Equipment

Medical devices have to maintain a certain level of accuracy, voltage control and reliability. Performance and safety in imaging devices, monitoring systems, and portable diagnostic equipment makes these systems critical and supplies switching power devices.

Consumer Electronics

Televisions, gaming consoles, laptops, and smart home appliances all utilize switching power supplies. Their efficiency in consumer electronics helps reduce energy costs, as well as prolong battery life.

To find out more regarding the configurations offered with switching power supplies, you may view the detailed catalog available on OMCH’s official website: Discover OMCH’s range of switch-mode power supplies:https://www.omchsmps.com/de/path/switch-mode-power-supply/ .

Conclusion

Due to their unrivaled capabilities of performance, energy efficiency, and compact size, switching power supplies serve as a foundation for modern electronics. The greater the demand for smarter and more efficient systems, the greater the necessity for reliable power conversion. These supplies serve as key enablers of innovation and sustainability, from industrial automation to everyday electronics.

Although there are quite a few suppliers existing in the market, few, like OMCH, serve the global market with high-performance customized switching solutions. With an understanding of the practical applications alongside its accompanying technology, engineers and consumers are better informed and more empowered to make decisions in their respective fields.
